Glass Systems

PIVOT

PIVOT glazing is a glass curtain made of glass panels, aluminum profiles and the components needed to guide and slide the panels to a parking spot on one or both sides of the opening, followed by a 90° turn inward or outward.

PIVOT

System Features

  • All components are made in the European Union and have the required tests and certifications
  • Bottom support: panels do not hang from the ceiling; it is the most stable and wind-resistant setup
  • According to its tests, it is the most airtight system in the sector; usable all year round
  • No bearings: panels glide silently on the track, with no extra maintenance
  • Panels open inward or outward and slide to both sides
  • Corrects opening defects up to 68 mm with top and bottom compensating profiles

Dimensions

  • Maximum system height with 10 mm glass: 3200 mm
  • Panel width: minimum 350 mm · recommended 650 mm · maximum 800 mm
  • Up to 18 panels stacked per opening, at one or both ends or in the center, with no extra columns

Openings

  • Inward: standard configuration, with one standard arm (right or left)
  • Outward: extra configuration, with a standard arm and a short arm

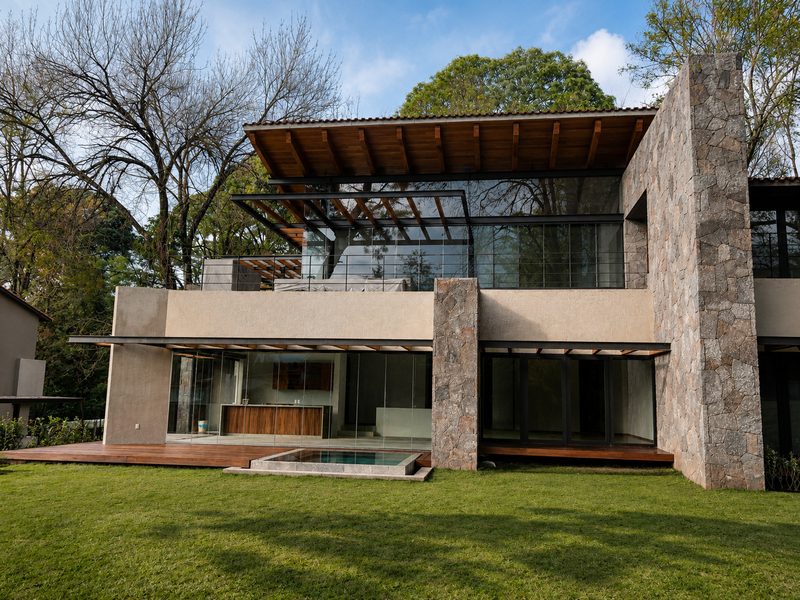

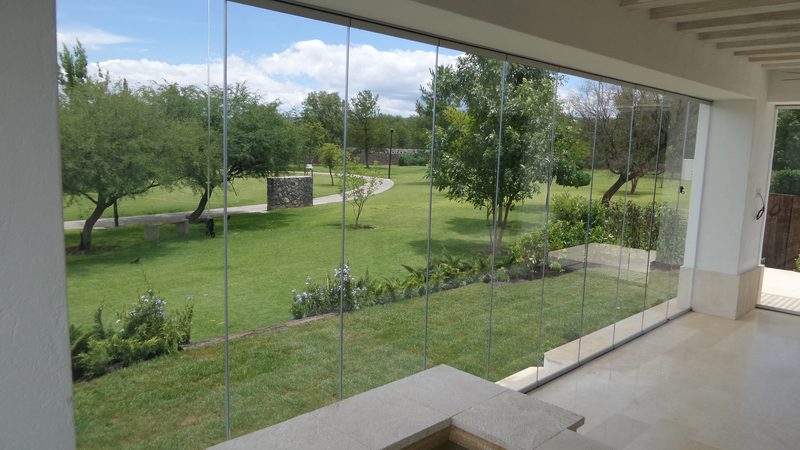

Installed PIVOT glass curtain
Installed PIVOT glass curtain
PIVOT profile system in section
PIVOT profile system in section
Components: leaf profile, sliding track, rail, drainage and compensator set
Components: leaf profile, sliding track, rail, drainage and compensator set
System configurations
System configurations
Standard configurations
Standard configurations
Inward and outward opening
Inward and outward opening
