Glass Systems

SLIDE

SLIDE glass curtain: tempered or laminated glass panels that slide on aluminum profiles.

SLIDE

System Panels

  • Maximum system height: 3300 mm
  • Panel width: between 350 mm and 1200 mm
  • Maximum number of panels: unlimited
  • Maximum panel weight: 150 kg

Glass

  • Tempered or laminated with no drilling, 10 mm thick

Tests

  • Wind load: class 6
  • Sound insulation: 34 dB
  • Thermal insulation: 5.6 W/m²K
  • Air tightness: class 2
  • Tests: UNE 12600 (2003). 1C1

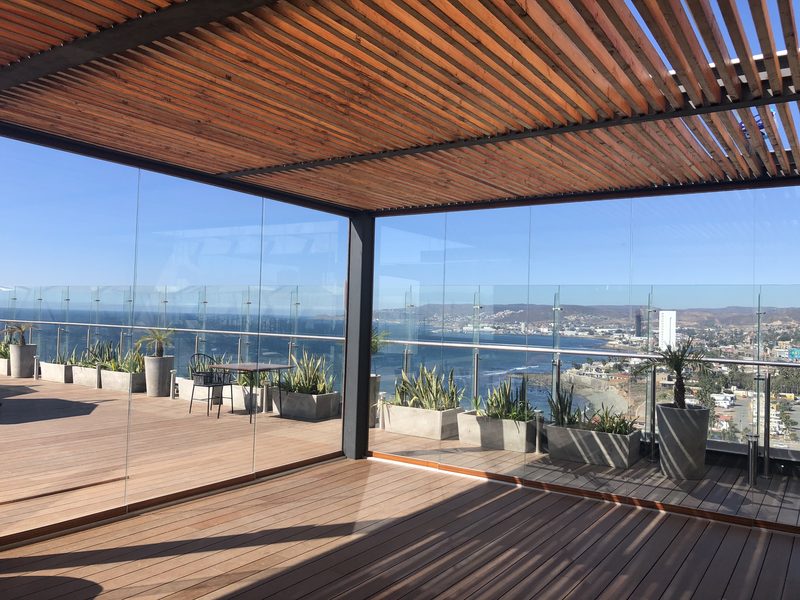

Installed SLIDE glass curtain
Installed SLIDE glass curtain
System profiles: leaf profile, drag cover, roller carriage and bottom guide
System profiles: leaf profile, drag cover, roller carriage and bottom guide
Standard system configurations
Standard system configurations
Track detail
Track detail

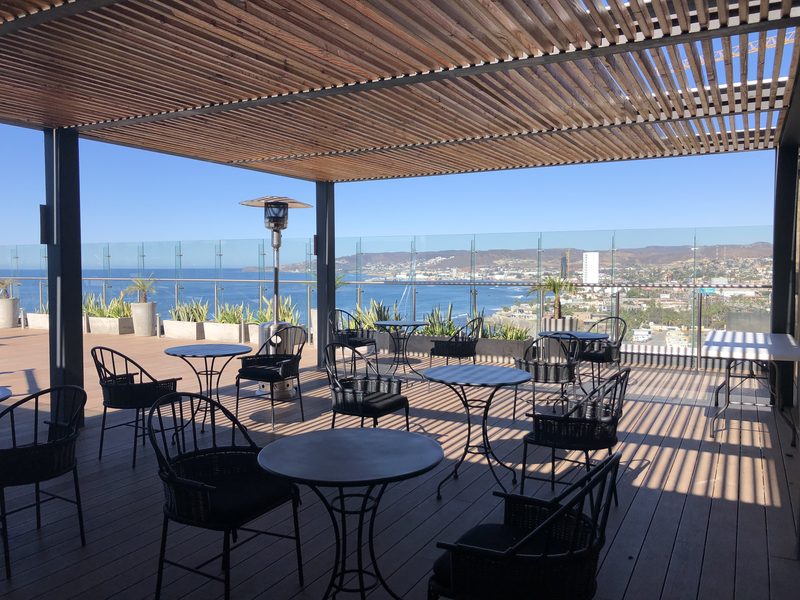

SLIDE system installations
SLIDE system installations
